FPGA定点和浮点数学运算-实例对比

文章来源:OpenFPGA

在创建 RTL 示例时,经常使用 VHDL 2008 附带的 VHDL 包。它提供了出色的功能,可以高效地处理定点数,当然,它们也是可综合的。该包的一些优点包括:

  • 有符号和无符号(后缀和后缀)定点向量。

  • 轻松将定点数表示并量化为定点向量。

  • 小数点位于向量元素 0 和 -1 之间。这样就无需在运算过程中跟踪小数点以进行对齐(大量运算这点很难把握)。

  • 运算的溢出、舍入和范围管理有明确的定义。

  • 算术和比较运算符。

因此,当需要实现算法时,我会使用这个包。但是实际应用时,还会有很多浮点运算。

自然而然地,一个问题出现了:用定点和浮点实现同一个方程时,资源有什么区别?

我们将要看的例子是如何利用多项式近似地将ADC读数转换为温度值。这在工业应用中很常见(使用铂电阻温度计时)。

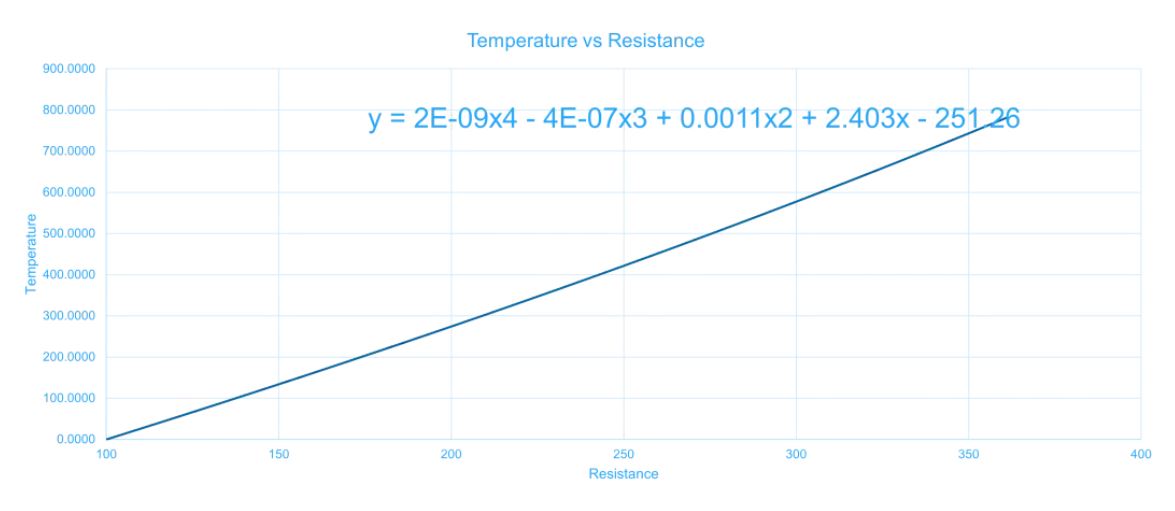

要实现的具体方程是 y = 2E-09x4 - 4E-07x3 + 0.011x2 + 2.403x - 251.26,该方程是从绘制方程式中提取出来的。虽然我们可以直接实现该方程,但这会非常浪费资源,还会增加开发的复杂性和风险。


使用定点数系统,我们需要做一些量化来保持精度和准确度。

代码和一个简单的仿真如下。

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use ieee.fixed_pkg.all;
entity complex_example is port(
clk    : in std_logic;
ip     : in std_logic_vector(7 downto 0);
op     : out std_logic_vector(8 downto 0));
end complex_example;
architecture Behavioral of complex_example is
signal power_a : sfixed(8 downto -32):=(others=>'0');
signal power_b : sfixed(8 downto -32):=(others=>'0');
signal power_c : sfixed(8 downto -32):=(others=>'0');
signal calc  : sfixed(8 downto -32) :=(others=>'0');
signal store : sfixed(8 downto 0) := (others =>'0');
constant a : sfixed(8 downto -32):= to_sfixed( 2.00E-09, 8,-32 );
constant b : sfixed(8 downto -32):= to_sfixed( 4.00E-07, 8,-32 );
constant c : sfixed(8 downto -32):= to_sfixed( 0.0011, 8,-32 );
constant d : sfixed(8 downto -32):= to_sfixed( 2.403, 8,-32 );
constant e : sfixed(8 downto -32):= to_sfixed( 251.26, 8,-32 );
type reg_array is array (9 downto 0) of sfixed(8 downto -32);
signal pipeline_reg : reg_array;
begin
cvd : process(clk)
begin
 if rising_edge(clk) then
    store <= to_sfixed('0'&ip,store);
    power_a <= resize (arg => power_b * store * a,
                       size_res => power_a);
    power_b <= resize (arg => power_c * store * b,
                       size_res => power_b);
    power_c <= resize (arg => store * store * c,
                       size_res => power_c);
    calc <= resize (arg => power_a - power_b  + power_c + (store * d) - e,
                    size_res => calc);
    pipeline_reg <= pipeline_reg(pipeline_reg'high -1 downto 0 ) & calc;
 op <= to_slv(pipeline_reg(pipeline_reg'high)(8 downto 0));
  end if;
end process;
end Behavioral;

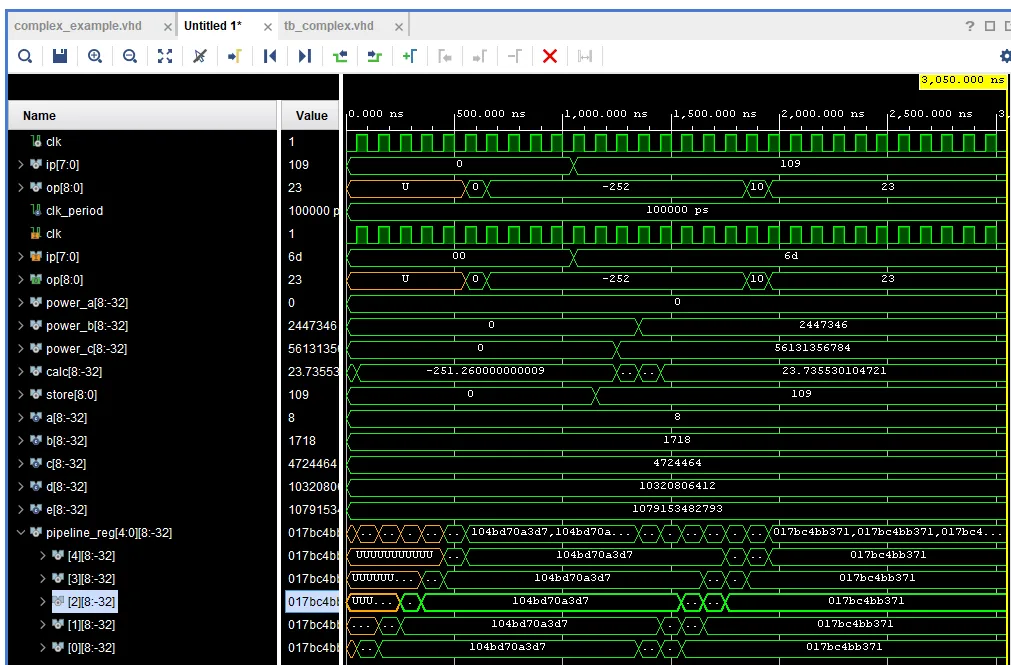

对于 109 Ω的电阻输入,温度应报告为 23.7°C。我们可以在下面的定点仿真中看到,结果符合预期,精度在可接受的范围内。


使用浮点包实现相同的功能,以类似的方式实现

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.FLOAT_pkg.ALL;  -- Use the floating-point package
entity FloatingPointPolynomial is
    Port (
        clk : in STD_LOGIC;
        x : in float32;  -- Input x as a 32-bit floating-point number
        y : out float32  -- Output y as a 32-bit floating-point number    );
end FloatingPointPolynomial;
architecture Behavioral of FloatingPointPolynomial is
    -- Define constants for the polynomial coefficients
    constant a4 : float32 := TO_float(2.00E-09);
    constant a3 : float32 := TO_float(-4.00E-07);
    constant a2 : float32 := TO_float(0.011);
    constant a1 : float32 := TO_float(2.403);
    constant a0 : float32 := TO_float(-251.26);
    signal x2, x3, x4 : float32;  -- Intermediate powers of x
    signal term4, term3, term2, term1 : float32;  -- Polynomial terms
    signal res : float32;
    type reg_array is array (9 downto 0) of float32;
    signal pipeline_reg : reg_array;
begin
    process(clk)
    begin
        if rising_edge(clk) then
            -- Calculate powers of x
            x2 <= x * x;
            x3 <= x2 * x;
            x4 <= x3 * x;
            -- Calculate each term in the polynomial
            term4 <= a4 * x4;
            term3 <= a3 * x3;
            term2 <= a2 * x2;
            term1 <= a1 * x;
            -- Calculate final result
            res <= term4 + term3 + term2 + term1 + a0;
            pipeline_reg <= pipeline_reg(pipeline_reg'high -1 downto 0 ) &
       res;
            y <= (pipeline_reg(pipeline_reg'high));
        end if;
    end process;
end Behavioral;

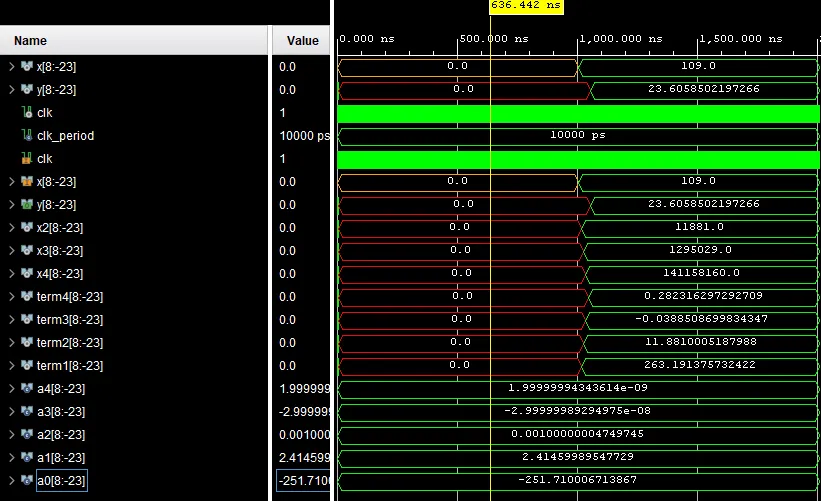

仿真再次显示了预期的结果,作为浮点结果,我们得到的结果也包括分数元素。



因此,定点和浮点都能够实现定义的算法。

为了了解利用所需的资源,决定将这两种算数实现都以 K26 SoM 为目标进行综合。

运行综合将识别每个模块所需的资源。

正如预期的那样,定点实现所需的逻辑占用空间比浮点实现所需的小得多。

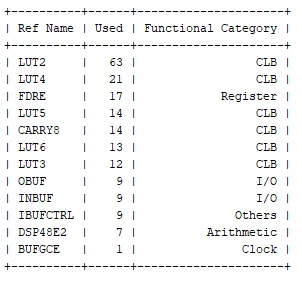

定点实现



浮点实现

我们不仅需要考虑逻辑占用空间,还需要考虑时序性能。考虑到这一点,将两个设计都设置为 200 MHz 运行,并从一开始就实现了基准时序收敛。

实现时序收敛比定点收敛更重要,这在浮点实现中是可以预料到的。不得不重新审视设计,并在几个关键阶段实现流水线,因为最初的代码只是为了确定占用空间的差异。

值得注意的是,Versal 系列中的 DSP58 支持浮点运算,但它不能直接从 float32 映射到 DSP。为了利用此功能,我们需要实例化配置为 FP32 操作的 DSP58,或者利用 Vivado IP 集成器提供的浮点 IP。

总结这篇博客,正如预期的那样,在使用 VHDL 中的浮点库时,逻辑占用空间存在很大差异。

建议在必要时利用定点,并在绝对必要时限制浮点。
