作者：Grace Sun，AMD工程师；来源：AMD开发者社区
Vitis AI Library包含了xdputil工具，可作为板级开发的辅助调试手段，其源代码位于以下位置：
https://github.com/Xilinx/Vitis-AI/tree/master/src/vai_library/usefultools
在预编译的官方board image和Vitis AI docker中均已安装了xdputil。对于定制的target board，安装方式可参考对应版本的Vitis AI Library用户指南，例如：
https://docs.amd.com/r/en-US/ug1354-xilinx-ai-sdk/Step-3-Installing-the-...

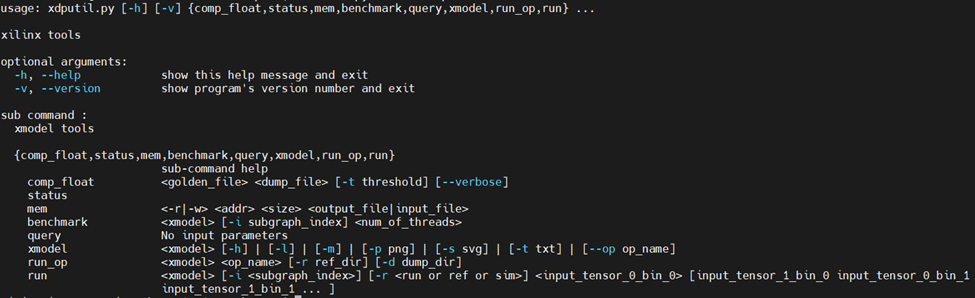

在docker环境下跑xdputil，可运行usr/bin/python3 -m xdputil。以下是运行xdputil -h以后的用法概览：
大部分的子命令需要关联DPU和Device信息，只能在目标板上运行。一般在docker里面可对xmodel文件做进一步解析和查看。
对于xdputil xmodel子命令，可以进一步用-h查看用法。
以下给出了一些具体示例及命令输出。
显示xmodel subgraph信息，包括input/output tensor，kernel。
xdputil xmodel -l yolov6m_pt.xmodel
{
"subgraphs":[
{
"index":0,
"name":"subgraph_ModelNNDct__ModelNNDct_QuantStub_quant__input_1",
"device":"USER"
},
{
"index":1,
"name":"subgraph_ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__Conv2d_conv__input_3",
"device":"DPU",
"fingerprint":"0x603000b56011861",
"DPU Arch":"DPUCVDX8G_ISA3_C32B6",
"workload":81415208000,
"input_tensor":[
{
"index":0,
"name":"ModelNNDct__ModelNNDct_QuantStub_quant__input_1_fix",
"shape":[
1,
640,
640,
3
],
"fixpos":6
}
],
"output_tensor":[
{
"index":0,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_1__inputs_7_fix",
"shape":[
1,
40,
40,
4
],
"fixpos":3
},
{
"index":1,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_2__24287_fix",
"shape":[
1,
20,
20,
80
],
"fixpos":4
},
{
"index":2,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_2__inputs_11_fix",
"shape":[
1,
20,
20,
4
],
"fixpos":3
},
{
"index":3,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_0__24021_fix",
"shape":[
1,
80,
80,
80
],
"fixpos":4
},
{
"index":4,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_0__inputs_3_fix",
"shape":[
1,
80,
80,
4
],
"fixpos":4
},
{
"index":5,
"name":"ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_1__24154_fix",
"shape":[
1,
40,
40,
80
],
"fixpos":4
}
],
"reg info":[
{
"name":"REG_0",
"context type":"CONST",
"size":34244864
},
{
"name":"REG_1",
"context type":"WORKSPACE",
"size":37017600
},
{
"name":"REG_2",
"context type":"DATA_LOCAL_INPUT",
"size":1230784
},
{
"name":"REG_3",
"context type":"DATA_LOCAL_OUTPUT",
"size":705600
}
],
"instruction reg":213312
},
{
"index":2,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_2__inputs_11_fix_",
"device":"CPU"
},
{
"index":3,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_1__inputs_7_fix_",
"device":"CPU"
},
{
"index":4,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_reg_preds__ModuleList_0__inputs_3_fix_",
"device":"CPU"
},
{
"index":5,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_2__24287_fix_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__inputs",
"device":"CPU"
},
{
"index":6,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_1__24154_fix_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__inputs_9",
"device":"CPU"
},
{
"index":7,
"name":"subgraph_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__Conv2d__module__ModuleList_cls_preds__ModuleList_0__24021_fix_ModelNNDct__ModelNNDct_Detect__module__Detect_detect__inputs_5",
"device":"CPU"
}
]
}

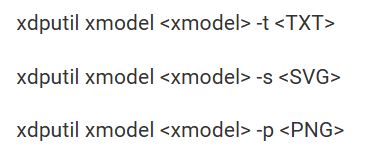

把xmodel转成其他格式
以-t为例，xdputil xmodel yolov6m_pt.xmodel -t yolov6_mt_xmodel.txt
从导出的.txt中可以获取input/output tensor，op_node等的详细属性。
显示xmodel中某一个operator的信息，op_name可从上述导出的.txt中获取。
xdputil xmodel yolov6m_pt.xmodel --op ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__Conv2d_conv__input_3
xmodel: yolov6m_pt.xmodel
op_name: ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__Conv2d_conv__input_3
{
"name" : "ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__Conv2d_conv__input_3",
"type" : "conv2d-fix",
"attrs" : {
"workload" : 270336000,
"device" : "DPU",
"bias_term" : true,
"workload_on_arch" : 635699200,
"shift_hsigmoid" : -128,
"nonlinear" : "RELU",
"kernel" : [
3,
3
],
"dilation" : [
1,
1
],
"hsigmoid_in" : -128,
"stride" : [
2,
2
],
"out_dim" : 48,
"channel_augmentation" : 1,
"pad_mode" : "FLOOR",
"shift_hswish" : -128,
"pad" : [
1,
0,
1,
0
],
"in_dim" : 3,
"group" : 1
},
"inputs" : [
{
"index" : 0,
"op_name" : "ModelNNDct__ModelNNDct_QuantStub_quant__input_1_upload_0",
"tensor_name" : "ModelNNDct__ModelNNDct_QuantStub_quant__input_1_fix_upload_0",
"shape" : [
1,
640,
640,
3
],
"data_type" : "xint8"
},
{
"index" : 1,
"op_name" : "ModelNNDct___module_backbone_stem_conv_weight",
"tensor_name" : "ModelNNDct___module_backbone_stem_conv_weight_fix",
"shape" : [
48,
3,
3,
3
],
"data_type" : "xint8"
},
{
"index" : 2,
"op_name" : "ModelNNDct___module_backbone_stem_conv_bias",
"tensor_name" : "ModelNNDct___module_backbone_stem_conv_bias_fix",
"shape" : [
48
],
"data_type" : "xint8"
}
],
"outputs" : {
"op_name" : "ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__Conv2d_conv__input_3",
"tensor_name" : "ModelNNDct__ModelNNDct_CSPBepBackbone__module__CSPBepBackbone_backbone__RealVGGBlock_stem__ReLU_relu__input_7_fix",
"shape" : [
1,
320,
320,
48
],
"data_type" : "xint8",
"attrs" : {
"round_mode" : "DPU_ROUND",
"bit_width" : 8,
"location" : 1,
"reg_id" : 1,
"fix_point" : 4,
"if_signed" : true,
"ddr_addr" : 11827200,
"stride" : [
4915200,
15360,
48,
1
]
}
}
}

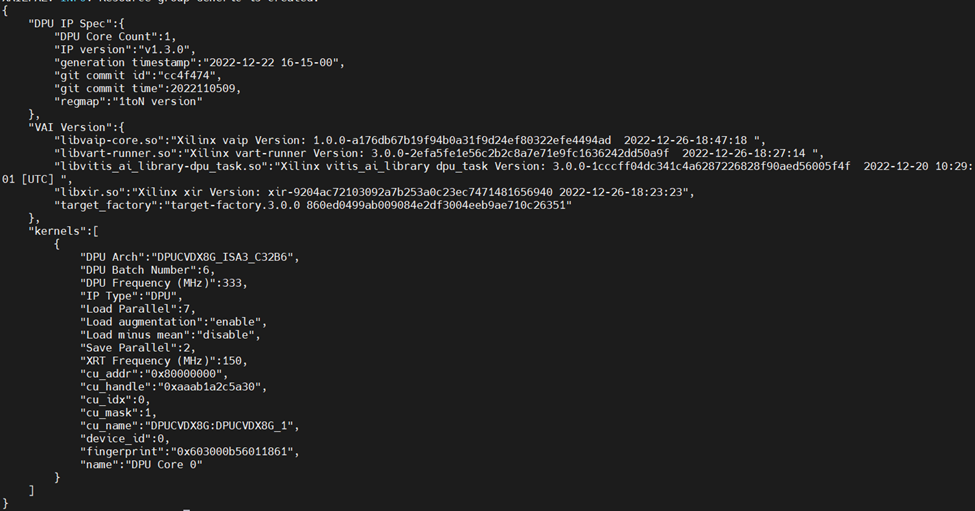

显示device信息，包括DPU 配置，指纹信息，runtime版本等，这可以帮助用户快速了解当前board的DPU重要信息，辅助调试运行中跟DPU兼容性相关的失败。
xdputil query

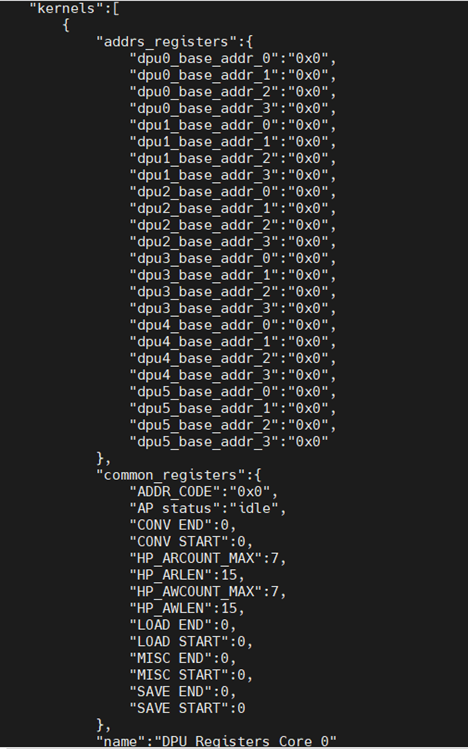

显示DPU寄存器状态
xdputil status
做benchmark测试
xdputil benchmark
subgraph_index从0开始，-i设成-1表示跑整个graph。Subgraph_index可从xdputil xmodel -l的输出中获取。
如果第一级为USER subgraph，那么-i 0会报错。
{
"index":0,
"name":"subgraph_ModelNNDct__ModelNNDct_QuantStub_quant__input_1",
"device":"USER"
},
改成-i 1后可以正常测试。
xdputil run可用于DPU运行结果不正确的调试，交叉检查参考值和DPU推理值。UG1414中给出了具体步骤：
https://docs.amd.com/r/en-US/ug1414-vitis-ai/DPU-Debug-with-VART
总之，xdputil的用法简单，可以辅助用户更直观深入地了解编译后的模型以及当前DPU的一些信息，在调试诸如DPU无法找到，指纹不匹配，以及和量化后准确率差异过大等问题的时候是一个有效的调试手段。
